Multi Function Installation

Multi Function Installation

Our initial digital design.

Our initial digital design.

Our latest installation is an example of various systems being integrated to work in perfect synchrony.
After getting in contact with us here at Tokyo TV, the client explained that they wanted a full system that would give them great visuals and great audio.

We created some media room renders using CAD design software and liaised with the client on how to optimise everything.


With the house being pre-wired for networking infrastructure we recommended the installation of an AV and Networking rack. This would allow all the kit to live in one convenient place, with adequate ventilation and maintenance access.

The clients networking and AV equipment when we arrived.

The clients networking and AV equipment when we arrived.

After stripping out the old kit and taking stock of the pre-existing cables, we installed a pull out data rack, which allows us to keep all of the equipment organised and makes maintaining the system a lot easier!

The rack contains:
. 48 network cables patched into panels
. Ubiquity managed network system
. Apple TV 4K
. Sky Q
. 4K Bluray player
. Sonos Connect streaming device
. Yamaha AV amplifier
. Pakedge IP controlled PDU
. Front and rear PDU with surge protection

The IP controlled PDU and managed network system allows us to access and control the system remotely, for trouble shooting and maintenance purposes.

Our Network and AV Rack.

Our Network and AV Rack.

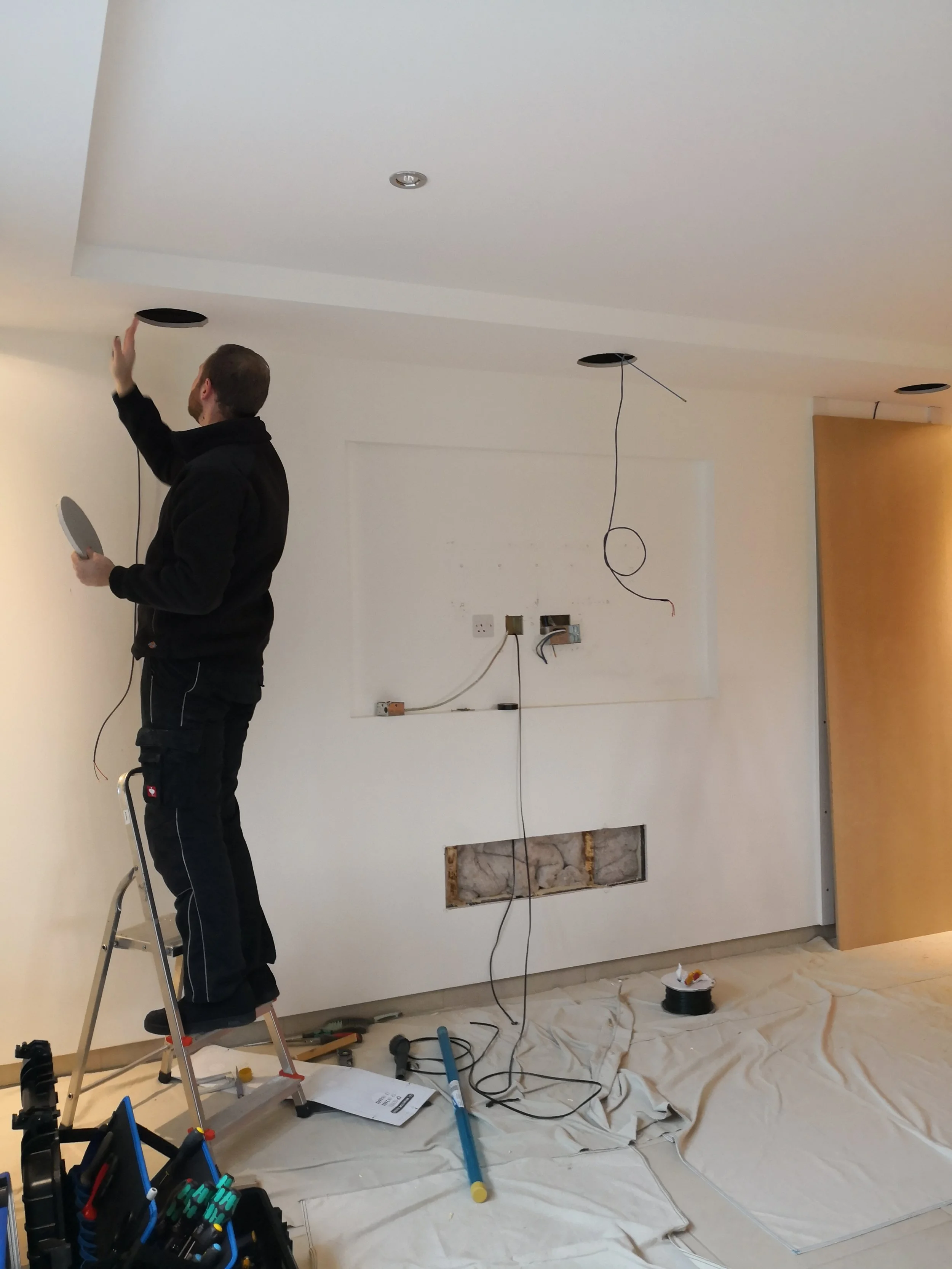

The first stage of the media room installation involved removing the previous speaker system, blocking up a window and installing the new speakers. We used Monitor Audio in wall speakers for the Right, Centre and Left channels, and In ceiling speakers for the surrounds.

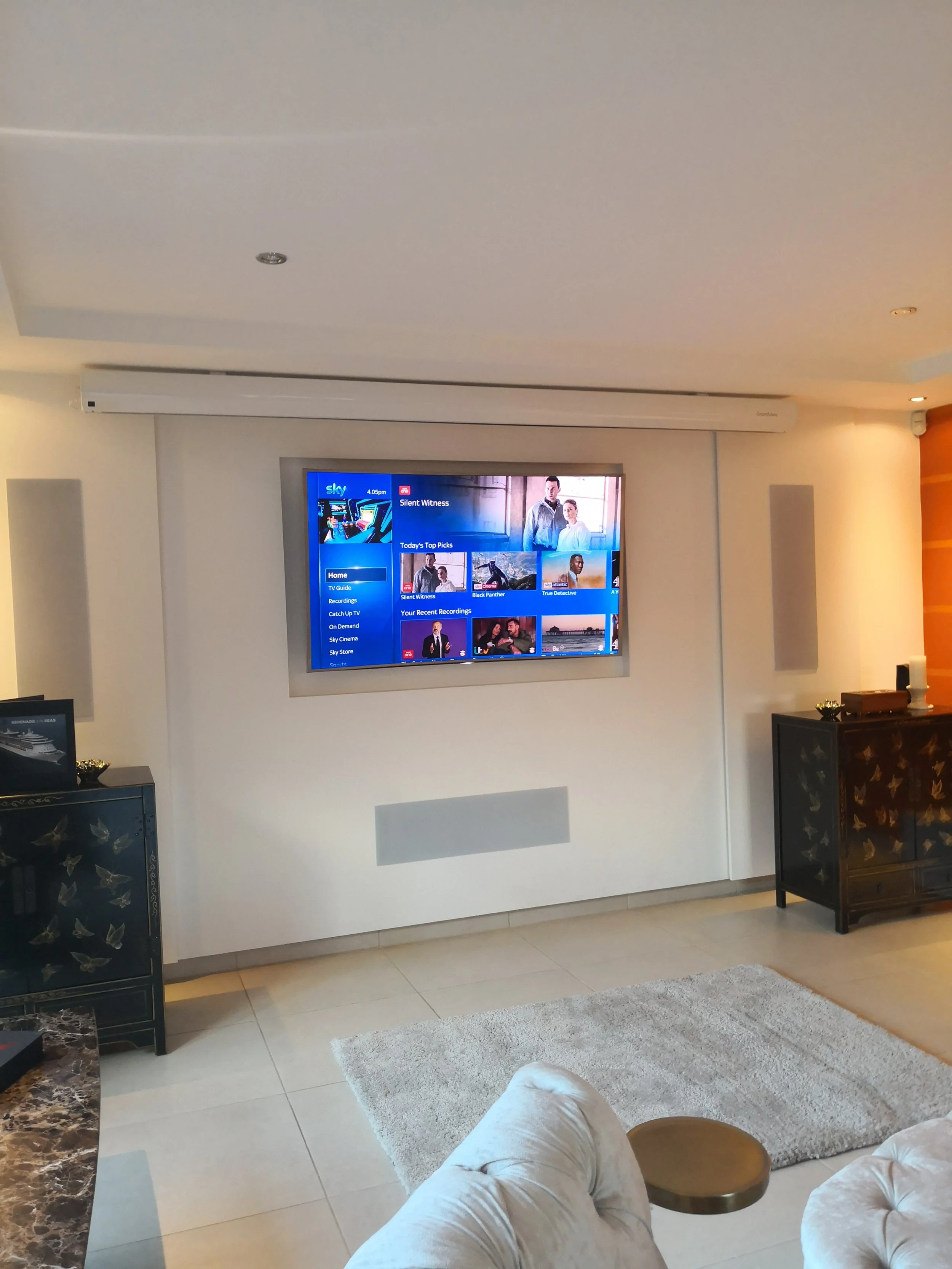

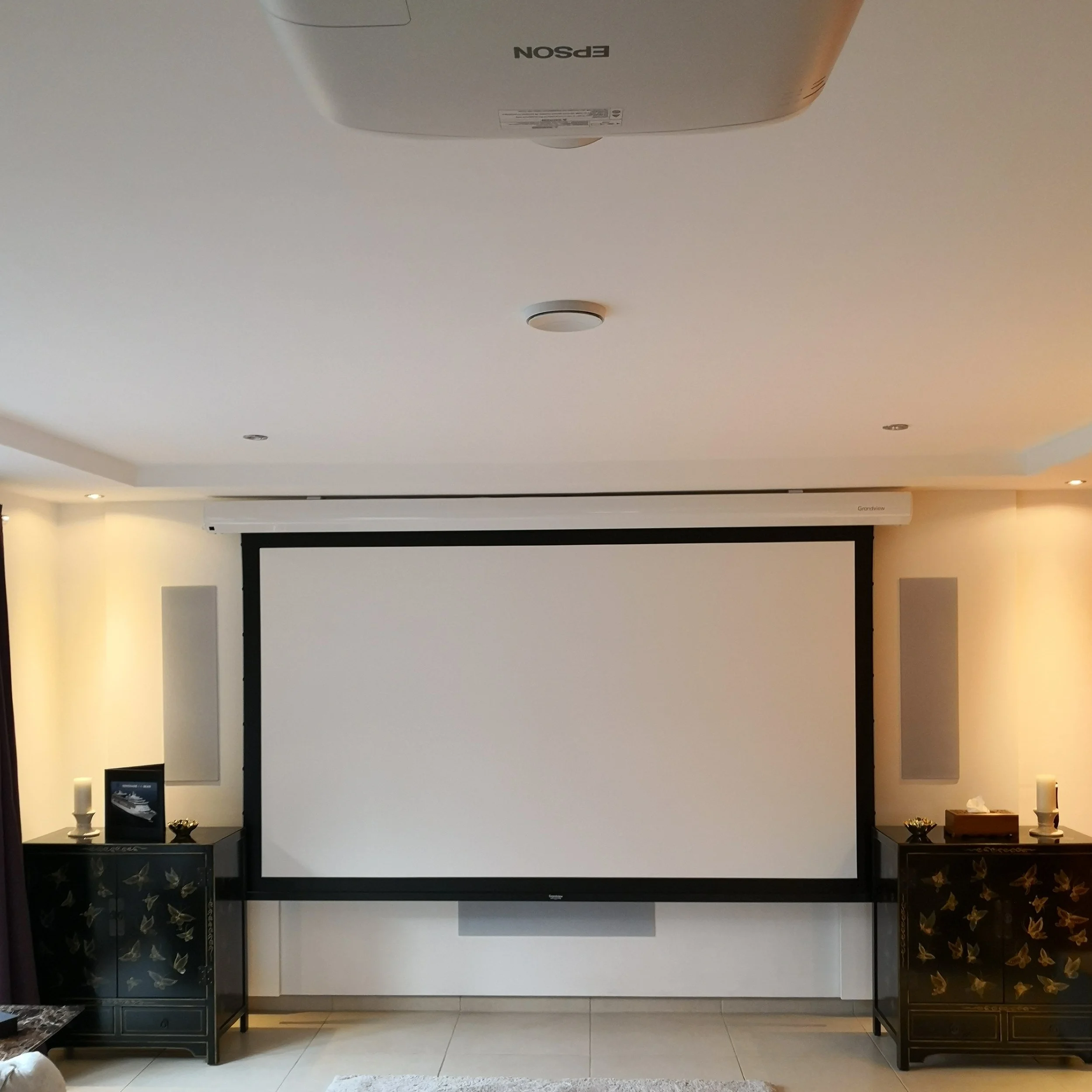

During the second installation day we mounted the television into the recess, and the projector and screen onto the ceiling, what a difference it’s made to the room!


Both the television and the projection system are controlled by Control4. Meaning its quick and easy to switch between each system and to access all of the video and audio sources that are available.

We also fitted televisions in both the gym and kitchen that can display SkyQ.

Gym TV.

Gym TV.

Kitchen TV.

Kitchen TV.

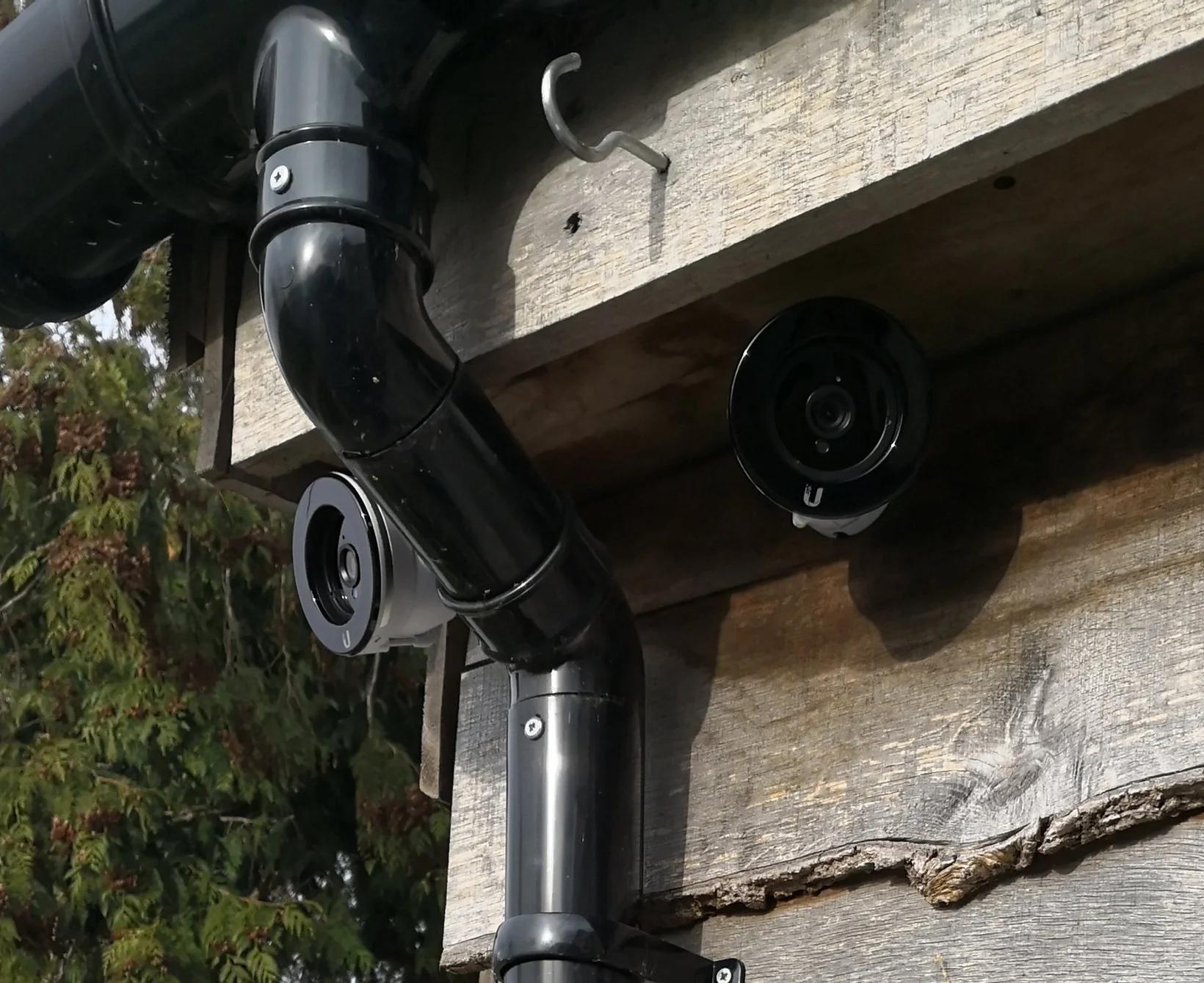

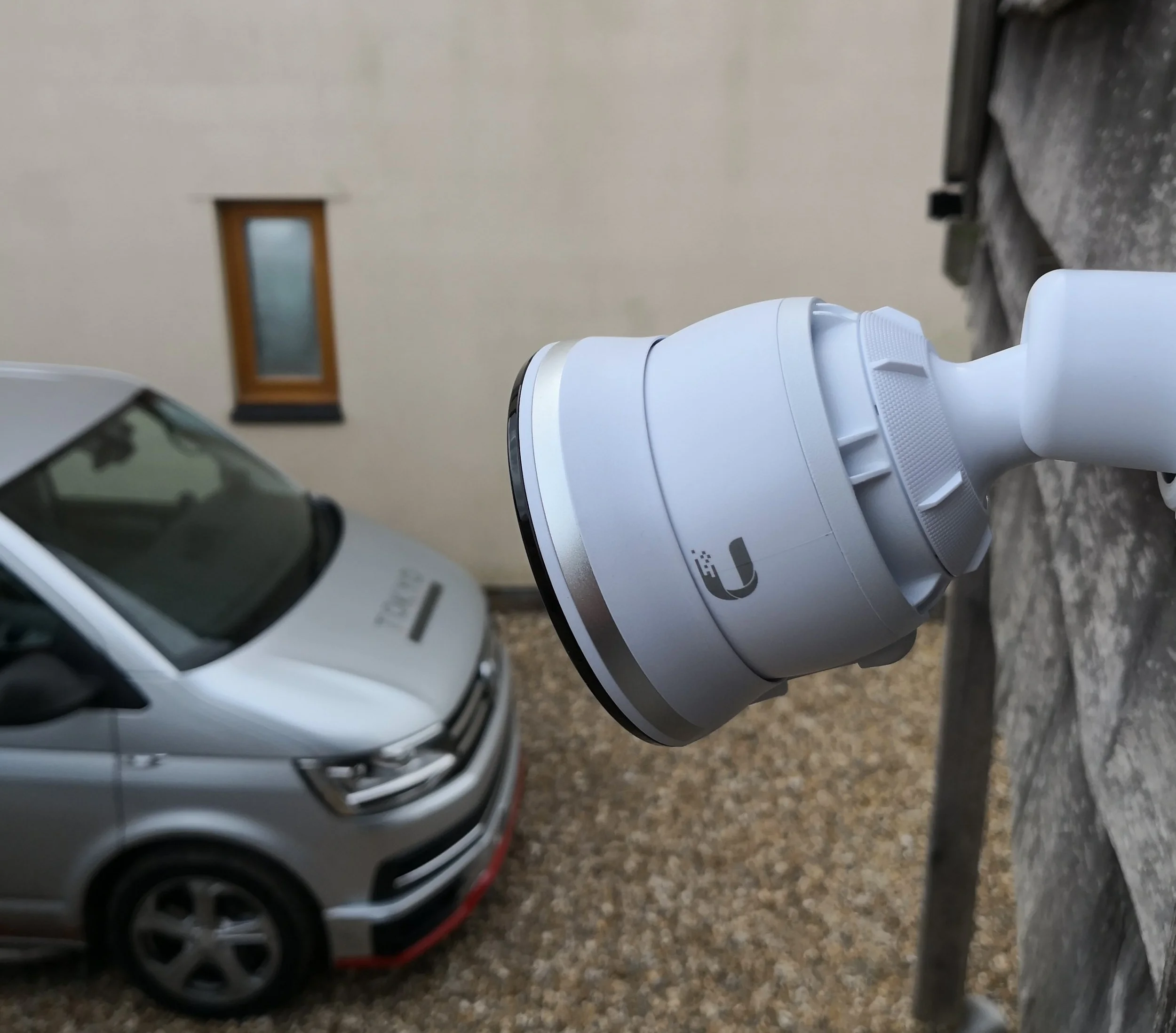

The final stage of our installation was installing a camera system at the property. The system we chose can be accessed via an app, and a live feed can be viewed on the projector or the television in the media room, making it quick and convenient to view the cameras.


Finished. A great looking installation and a happy client.


Tokyo TV Instagram

Our Instagram account contains a regularly updated portfolio of our projects.

Christmas Treats


Here’s an installation we completed just before Christmas.

Our client wanted a stress free system that can be used daily by the whole family.
After an initial consultation we agreed that a 5.1 surround system combined with a projector and ceiling mounted screen would be perfect for all of his needs.

The addition of a Control4 system gives the client control of his existing television, sky box and the kit that we installed, all on one remote!

The installation took one day, with cables run through the ceiling and under the carpet to keep everything neat and tidy!


Blue Lagoon drive in cinema

Blue Lagoon drive in cinema

After the initial installation a few years ago our client asked Tokyo to return for an upgrade.

After a brief consultation we managed to come up with an upgrade plan to improve not only the audio and visual quality of the cinema, but the usability and convenience of it as well.



A new Sony 4K projector provides a beautiful crystal clear image.

A new Sony 4K projector provides a beautiful crystal clear image.

Control4 Automation allows us to automate not only the lights and AV, but the various pinball machines, record players and other memorabilia that require power.

Control4 Automation allows us to automate not only the lights and AV, but the various pinball machines, record players and other memorabilia that require power.


Fully Automated Media Room

Fully Automated Media Room

We had the pleasure of designing and installing a fully automated media room at a georgeous property in Devon.

The room features:
7.1 in wall/ceiling surround sound system
Sony 4k projector with drop down screen
Wall mounted 65" OLED television
Automated lights and blinds
High speed wireless network

We also built a full rack to house and power all the AV equipment, this includes:
Sonos Amplifiers
Blu-Ray Player
SKY
Apple TV
Audio Amplifier
Ubiquity Network Switch

Devon 12.jpg

Modern Family Home

Modern Family Home

A great example of a versatile installation which is perfect for the modern family home.

An OLED television mounted on an articulated bracket in the lounge, with extra equipment such as a games console and Sky box hidden in a floating cabinet.

Sky HD, PS3 and Apple Tv.   An additional HDMI split has been added to distribute the Sky HD signal to both the television and a projector.

Sky HD, PS3 and Apple Tv.

An additional HDMI split has been added to distribute the Sky HD signal to both the television and a projector.

In ceiling Monitor Audio speakers and a Yamaha amplifier provide the legwork for the rooms audio distribution, taking feeds from both the Sky box and the customers vinyl record player.

The original B&O television has been upgraded for a SONY OLED, giving the customer a clearer and more energy efficient viewing experience.

The original B&O television has been upgraded for a SONY OLED, giving the customer a clearer and more energy efficient viewing experience.

Tokyo also installed a UBIQUITY wireless network to the property. This allows us to use CONTROL4 to automate the AV equipment.

Tokyo also installed a UBIQUITY wireless network to the property. This allows us to use CONTROL4 to automate the AV equipment.

One CONTROL4 remote that can control the projector, Sky box and television.  At the clients discretion other household technologies can be integrated into adn controlled by the system, such as lighting, heating and blinds.

One CONTROL4 remote that can control the projector, Sky box and television.

At the clients discretion other household technologies can be integrated into adn controlled by the system, such as lighting, heating and blinds.


Gold at the end of the rainbow

Gold at the end of the rainbow


A beautiful location receiving a major upgrade to their viewing and Internet browsing experience.

Full Ubiquity wireless network with multiple access points throughout the main building and outhouse.

75" flat mounted television with discrete cable management and Control4 AV automation.


TOKYO TV beside the sea.

TOKYO TV beside the sea.

Weymouth is the latest location for this beautiful smart home installation.


Sky Q Upgrade

Sky Q Upgrade

Our customer had problems when upgrading their Sky package to SkyQ - the distance between boxes made wireless connection impossible, and the Sky engineers were unable to offer any suitable solutions.

Tokyo TV to the rescue! We installed a discreet network cable around the outside of the property to link the SkyQ Mini box into the network - Our customer can now enjoy SkyQ in every room.

Modern Home TV Mounting

Modern Home TV Mounting

This customer renovated their whole home and wanted a clean, stylish TV installation to match their home. Featuring centralised CYP HDBT distribution and our luxury floating cabinets by Norstone.


Here our customer had moved into a new build requiring various TV's mounted, Sonos multiroom music,  HDBT distribution, seamless WiFi throughout, and a Control4 system to control it.

First phase installation at a beautiful country home.

First phase installation at a beautiful country home.

This exciting project has now reached the stage for the TOKYO TV team to deliver the equipment and start testing and terminating the infrastructure of this prestige residential project.

The first challenge is to identify and organise the cabling installed by the electricians to the TOKYO TV original cable infrastructure design plans..

Once the cables have been identified, cleaned, dressed and tested the cable can then be terminated into our custom designed data cabinet, this will also house the SKY boxes, CYP video distribution and WiFi control system.

The next phase will be the installation of the integrated speaker system and WiFi access points.

Flagship restaurant AV installation in Southampton.

Flagship restaurant AV installation in Southampton.

When an audiophile customer requires the best possible sound and vision system for his latest restaurant TOKYO TV were delighted to make his dreams come true.  Steak Of The Art  in Southampton is the third restaurant in this fast growing luxury chain, and the third time TOKYO TV have been asked to provide the ultimate in audio visual entertainment for their diners.

The system was installed over three days by the expert TOKYO TV team of Sam, Alan and Andy.  The system consisted of a central equipment cabinet including 2 x Cloud 4400 amplifiers 4 x Sonos zone amplifiers, CYP 4x4 HD video matrix, Sony Bluray, Apple TV and power distribution.  In the restaurant the vision was supplied via 4 x Sony 55" 4k screens and the sound was delivered via 14 x Monitor Audio Professional wall mounted speakers.  Even the toilets had dedicated Sonos music via in-ceiling Monitor Audio speakers.

This whole system is controlled from the restaurants front desk via an Apple ipad mounted in the latest Launch Port ipad dock.

The whole project was delivered on time and on budget and we are already looking forward to the next Steak Of The Art opening in a city near you soon!!
